Steam Accessories

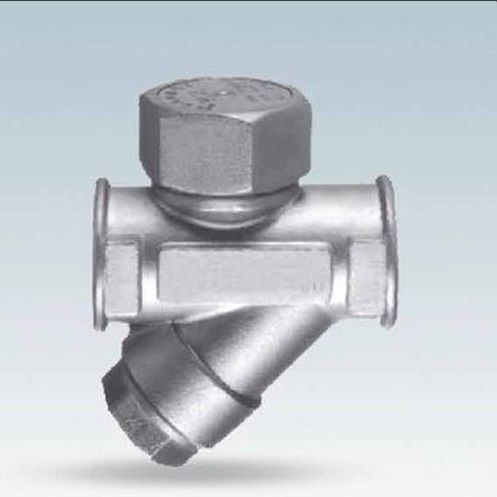

Thermodynamic Steam Trap
Advanced thermodynamic steam trap utilizing temperature-sensitive disc mechanism to discharge condensate while blocking live steam. Available in cast steel and stainless steel options, ideal for applications with variable steam demand and rapid cycling requirements.
- Handles rapid load changes efficiently
- Compact single-unit design
- Wide operating pressure range
- Minimal moving parts (reliability)
Typical Application
Variable-load steam lines, process equipment, heat exchangers, indirect heating systems.
Technical Specifications
| Body Material | Cast Steel or Stainless Steel |
|---|---|
| Valve Type | Thermodynamic Disc |
| Working Pressure | 0–40 bar |
| Temperature Range | Saturated steam up to 280°C |
| Connection Size | DN15 to DN50 (flanged or threaded) |
| Discharge Capacity | Up to 500 kg/h condensate |
Specifications are indicative — exact options confirmed at the time of quotation.
