Steam AccessoriesAngle Seat Pneumatic Actuator Valve
Pneumatically actuated directional control valve for steam lines.
- Body Type
- Angle Seat
- Actuation
- Pneumatic (24 VDC solenoid)
- Material
- Stainless Steel / Cast Body
- Connection
- NPT/BSP Threaded
Steam Accessories

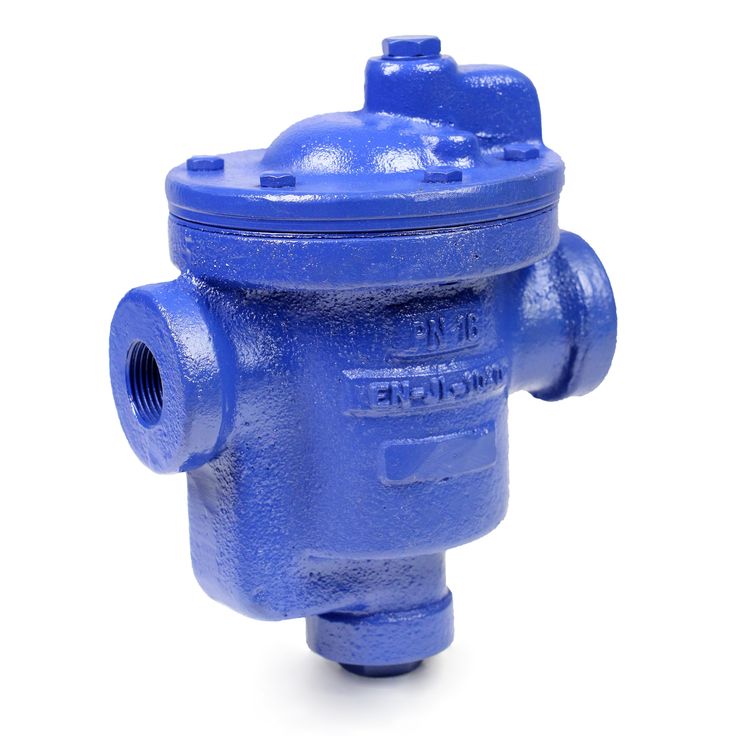

Bucket Steam Trap
Blue-painted cast iron inverted bucket steam trap designed to eliminate condensate and air from steam distribution lines. Features a sealed internal bucket that floats on condensate, automatically opening for discharge.
- Effective air and condensate removal
- Simple, proven bucket mechanism
- Thermostatic air vent included
- Compact footprint
Typical Application
Steam generation lines, superheaters, heating elements, auxiliary steam systems.
Technical Specifications
| Body Material | Cast Iron |
|---|---|
| Working Pressure | 0–10 bar |
| Temperature Range | Up to 200°C saturated steam |
| Connection Size | DN15 to DN40 |
| End Connection | Flanged or Threaded NPT/BSP |
| Trap Mechanism | Inverted Bucket with Float Valve |
Specifications are indicative — exact options confirmed at the time of quotation.
Related Products
All productsYou may also need
Steam Accessories
Steam AccessoriesBall Float Steam Trap
Inverted bucket steam trap with ball-float mechanism for condensate removal.
- Body Material
- Cast Iron (PN16 / Class 150)
- Connection Size
- DN15 to DN50
- Working Pressure
- 0–16 bar
- Temperature Range
- Up to 220°C saturated steam
Steam AccessoriesDial Thermometers, Pressure Gauges & Remote Mount Sensors
Comprehensive range of analog and remote temperature and pressure instruments.
- Instruments Shown
- 6 types (dial thermometers, pressure gauges, remote sensors)
- Temperature Range
- 0–120°C (standard models)
- Pressure Range
- 0–60 bar (glycerin-filled)
- Mount Types
- Direct, Flange, Remote, Spring-mounted
