Steam AccessoriesAngle Seat Pneumatic Actuator Valve
Pneumatically actuated directional control valve for steam lines.
- Body Type
- Angle Seat
- Actuation
- Pneumatic (24 VDC solenoid)
- Material
- Stainless Steel / Cast Body
- Connection
- NPT/BSP Threaded
Steam Accessories

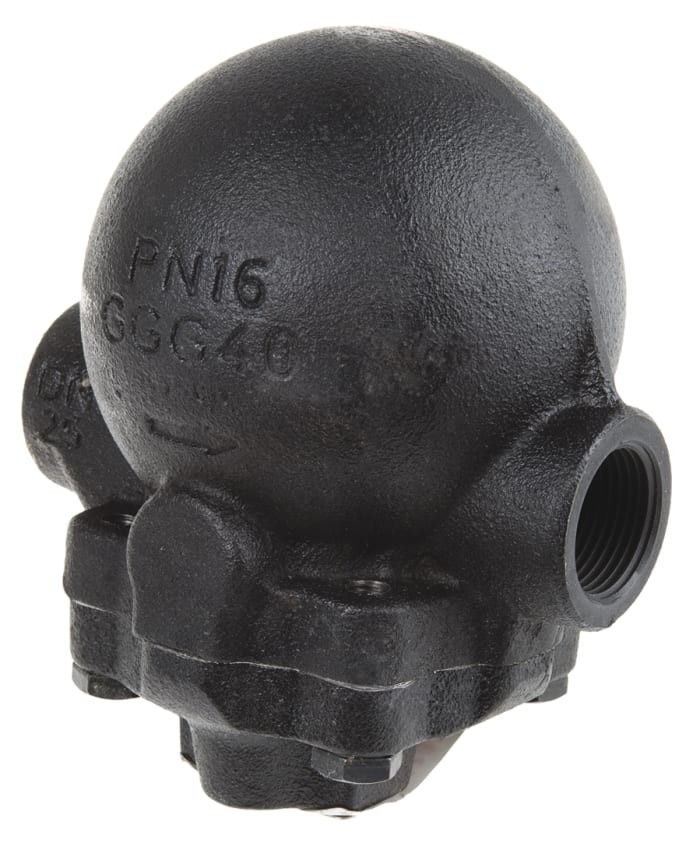

Ball Float Steam Trap
Cast iron steam trap utilizing ball float technology to automatically discharge condensate and air while preventing live steam loss. Designed for reliable operation across varying load conditions.
- Robust cast iron construction
- Self-balancing mechanism
- Wide operating range
- Minimal steam loss
Typical Application
Steam lines, heating systems, process plant condensate recovery.
Technical Specifications
| Body Material | Cast Iron (PN16 / Class 150) |
|---|---|
| Connection Size | DN15 to DN50 |
| Working Pressure | 0–16 bar |
| Temperature Range | Up to 220°C saturated steam |
| End Connection | Flanged (PN16) or Threaded |
| Trap Type | Ball Float with Thermostatic Air Vent |
Specifications are indicative — exact options confirmed at the time of quotation.
Related Products
All productsYou may also need
Steam Accessories
Steam AccessoriesBucket Steam Trap
Inverted bucket condensate trap for steam line air and condensate removal.
- Body Material
- Cast Iron
- Working Pressure
- 0–10 bar
- Temperature Range
- Up to 200°C saturated steam
- Connection Size
- DN15 to DN40
Steam AccessoriesDial Thermometers, Pressure Gauges & Remote Mount Sensors
Comprehensive range of analog and remote temperature and pressure instruments.
- Instruments Shown
- 6 types (dial thermometers, pressure gauges, remote sensors)
- Temperature Range
- 0–120°C (standard models)
- Pressure Range
- 0–60 bar (glycerin-filled)
- Mount Types
- Direct, Flange, Remote, Spring-mounted
