Steam AccessoriesAngle Seat Pneumatic Actuator Valve
Pneumatically actuated directional control valve for steam lines.
- Body Type
- Angle Seat
- Actuation
- Pneumatic (24 VDC solenoid)
- Material
- Stainless Steel / Cast Body
- Connection
- NPT/BSP Threaded
Steam Accessories

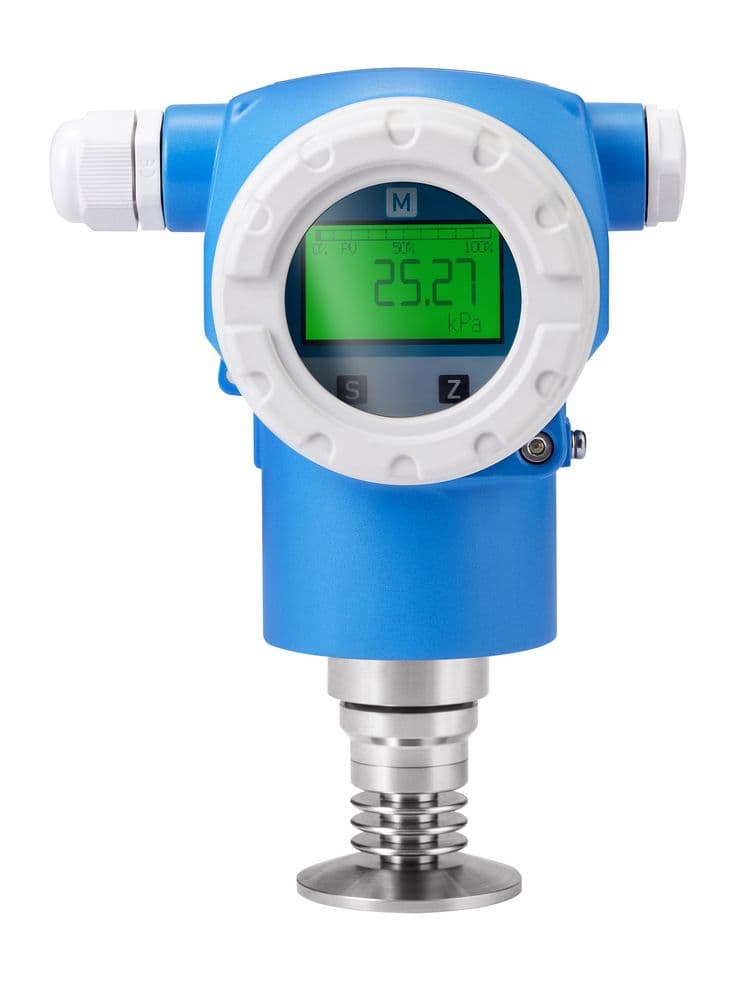

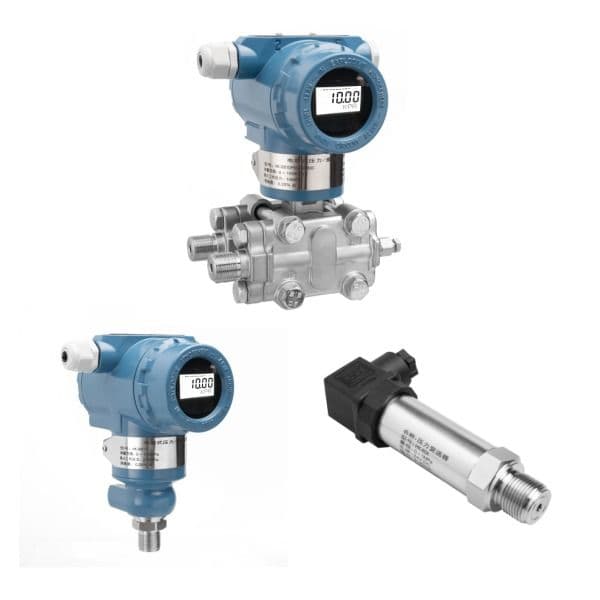

Smart Pressure Transmitter (TEMPRESS PPT 400)
TEMPRESS PPT 400 digital pressure transmitter with integrated LCD display, capable of measuring absolute, gauge, or differential pressure. Provides 4–20 mA analog output with HART digital protocol, enabling advanced diagnostics and parameter adjustment via handheld communicator.
- Integrated digital display for local readout
- HART communication for advanced diagnostics
- Stainless steel isolator diaphragm
- Easy parameter configuration via buttons
Typical Application
Boiler pressure monitoring, steam system instrumentation, process control loops, remote supervisory systems.
Technical Specifications
| Model | TEMPRESS PPT 400 series |
|---|---|
| Pressure Range | 0–100 bar (gauge); configurable spans |
| Output Signal | 4–20 mA + HART digital protocol |
| Display | Green LCD (shows kPa, bar, psi) |
| Connection | M20x1.5 or NPT bottom entry |
| Accuracy | ±0.5% FS |
Specifications are indicative — exact options confirmed at the time of quotation.
Related Products
All productsYou may also need
Steam Accessories
Steam AccessoriesBall Float Steam Trap
Inverted bucket steam trap with ball-float mechanism for condensate removal.
- Body Material
- Cast Iron (PN16 / Class 150)
- Connection Size
- DN15 to DN50
- Working Pressure
- 0–16 bar
- Temperature Range
- Up to 220°C saturated steam
Steam AccessoriesBucket Steam Trap
Inverted bucket condensate trap for steam line air and condensate removal.
- Body Material
- Cast Iron
- Working Pressure
- 0–10 bar
- Temperature Range
- Up to 200°C saturated steam
- Connection Size
- DN15 to DN40
