Steam Accessories

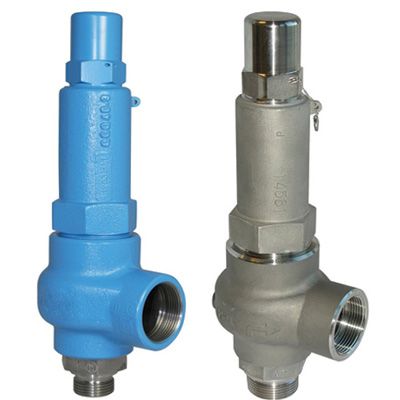

Safety and Pressure Relief Valve
Two high-capacity safety relief valves in cast steel and stainless steel bodies with adjustable pop-action or pilot-operated designs. Provides boiler overpressure protection by venting excess steam to atmosphere when pressure exceeds set point.
- PED / ASME certified design
- Rapid response pop action
- Adjustable relief set point
- Pilot-operated version for large flows
Typical Application
Boiler overpressure protection, steam generator safety systems, process equipment safeguarding.
Technical Specifications
| Body Material | Cast Steel or Stainless Steel |
|---|---|
| Valve Type | Direct Acting Pop or Pilot Operated |
| Pressure Setting Range | 5–50 bar (adjustable by authority) |
| Connection Size | DN25 to DN100 (flanged) |
| Capacity | 1 to 200 kg/h steam |
| Temperature | Saturated steam up to 280°C |
Specifications are indicative — exact options confirmed at the time of quotation.
