Steam AccessoriesAngle Seat Pneumatic Actuator Valve
Pneumatically actuated directional control valve for steam lines.
- Body Type
- Angle Seat
- Actuation
- Pneumatic (24 VDC solenoid)
- Material
- Stainless Steel / Cast Body
- Connection
- NPT/BSP Threaded
Steam Accessories

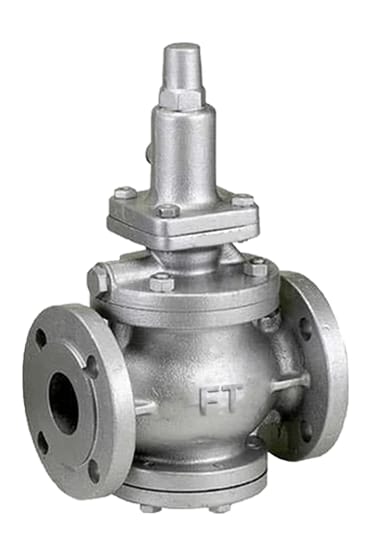

Pressure Reducing Valve
Stainless steel flanged pressure reducing valve with spring-actuated pilot stage. Maintains constant downstream pressure regardless of inlet pressure or flow fluctuations, with manual adjustment screw and integral pilot drain.
- Direct-acting pilot design (no external lines)
- Smooth pressure regulation
- Low inlet pressure requirement
- Easy adjustment with hand wheel
Typical Application
Steam distribution, process heating, auxiliary equipment protection, burner pressure control.
Technical Specifications
| Body Material | Stainless Steel (316L) |
|---|---|
| Inlet Pressure | Up to 40 bar |
| Outlet Pressure Range | 1–25 bar (adjustable) |
| Capacity | 1 to 100 m³/h steam / water |
| Connection Size | DN15 to DN50 (flanged) |
| Temperature | Saturated steam up to 220°C |
Specifications are indicative — exact options confirmed at the time of quotation.
