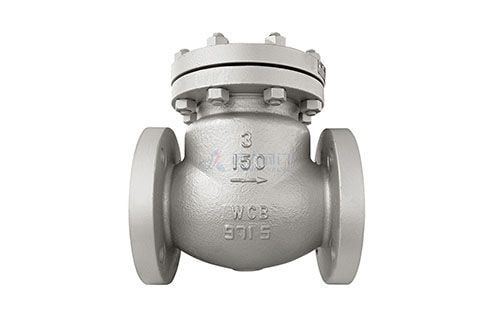

Non-Return Valve (NRV)
Flanged non-return (check) valve with internal swing disc mechanism. Allows unrestricted flow in one direction while preventing backflow, commonly installed on boiler discharge and feedwater lines to protect pump integrity.
- Minimal cracking pressure (silent operation)
- Low maintenance swing mechanism
- Excellent leak-tight sealing
- Wide pressure and temperature range
Typical Application
Boiler discharge protection, feedwater lines, steam condensate systems, cross-connection prevention.
Technical Specifications
| Body Material | Cast Steel (WCB / WC6) |
|---|---|
| Valve Type | Swing Check (Wafer or Flanged) |
| Pipe Size | DN15 to DN200 |
| Working Pressure | 0–25 bar |
| Temperature Range | –20 to +250°C |
| Face-to-Face | EN 558-1 / ASME B16.10 compliant |
Specifications are indicative — exact options confirmed at the time of quotation.
