Steam AccessoriesAngle Seat Pneumatic Actuator Valve
Pneumatically actuated directional control valve for steam lines.
- Body Type
- Angle Seat
- Actuation
- Pneumatic (24 VDC solenoid)
- Material
- Stainless Steel / Cast Body
- Connection
- NPT/BSP Threaded
Steam Accessories

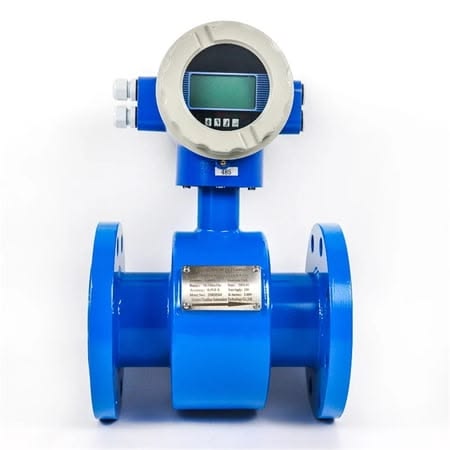

Electromagnetic Flow Meter
Blue-painted electromagnetic flow meter with remote digital transmitter head. Measures volumetric flow of conductive liquids using Faraday principle, providing precise 4–20 mA output for flow rate monitoring in boiler condensate recovery systems.
- No moving parts (zero pressure drop)
- Remote transmitter head simplifies installation
- Full-bore design for large diameters
- Digital display with parameter set options
Typical Application
Condensate flow monitoring, feedwater metering, process plant flow control.
Technical Specifications
| Pipe Size | DN10 to DN100 (fully customizable) |
|---|---|
| Output Signal | 4–20 mA / 0–10 VDC / Pulse |
| Accuracy | ±0.5% to ±1.0% of reading |
| Line Pressure | Up to 40 bar |
| Temperature Range | 0–80°C (liquid) |
| Electrode Material | Stainless Steel 316L |
Specifications are indicative — exact options confirmed at the time of quotation.
Related Products
All productsYou may also need
Steam Accessories
Steam AccessoriesBall Float Steam Trap
Inverted bucket steam trap with ball-float mechanism for condensate removal.
- Body Material
- Cast Iron (PN16 / Class 150)
- Connection Size
- DN15 to DN50
- Working Pressure
- 0–16 bar
- Temperature Range
- Up to 220°C saturated steam
Steam AccessoriesBucket Steam Trap
Inverted bucket condensate trap for steam line air and condensate removal.
- Body Material
- Cast Iron
- Working Pressure
- 0–10 bar
- Temperature Range
- Up to 200°C saturated steam
- Connection Size
- DN15 to DN40
