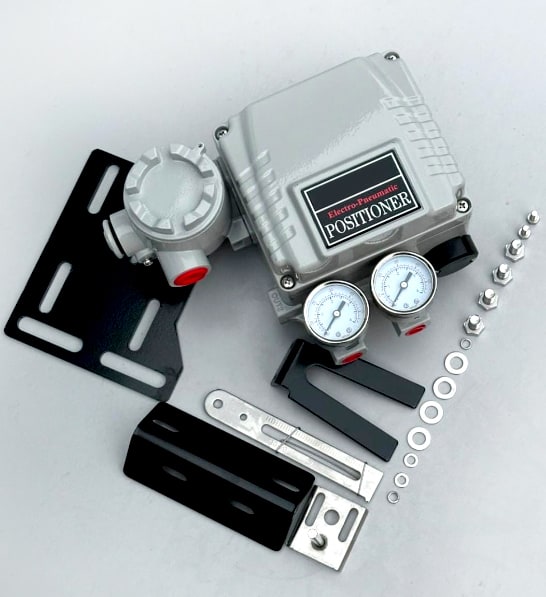

A modular electro-pneumatic positioner assembly featuring integrated proportional solenoid, pressure transducers, and signal conditioning electronics. Provides closed-loop feedback for precise valve stem positioning and flow modulation in automated boiler and process control systems. Includes pilot supply regulation and manual override capability.
Typical Application
Automated boiler pressure and temperature control, proportional flow regulation in steam distribution, process instrumentation automation.
| Input Signal | 4–20 mA DC / 0–10 VDC |
|---|---|
| Pneumatic Supply | 4–6 bar Pilot Air |
| Output Pressure | 0–6 bar to Proportional Solenoid |
| Pressure Gauges | Dual analog indication (2x glycerin-filled) |
| Protection Rating | IP65 Stainless Electronics Box |
| Mounting | Panel or Direct Valve Top Installation |
Specifications are indicative — exact options confirmed at the time of quotation.
